MyMonitor II 2-Channel Analog Mixer

Name: MyMonitor II 2-Channel Analog Mixer
Brand: ART
SKU: ARTPMYMONITORII
Price: 129.99 USD
Availability: InStock

$129.99

Color: Black

We Like Deals!

All ART

All Live Sound

All Mixers

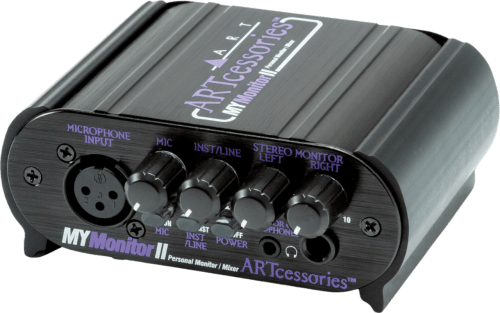

The MYMonitorII allows the blending of any microphone source with any stereo source in a convenient personal monitoring solution. The microphone thru provides direct connection to any mixer and will pass phantom power from the board for powering condenser microphones. Built for maximum flexibility, the ARTcessories MyMonitorII can be powered with the supplied 12vDC power supply, or from an internal 9v battery. The pop-less microphone on/off switch lets you locally mute the microphone. The headphone section has independent 1/8-inch and ¼-inch TRS outputs with plenty of drive for both.

Features

Blends any Microphone, Instrument and Stereo Source for Personal Monitoring
Passes Phantom Power for Operation with Condenser Microphones
Stereo Monitor Output with Blend Control
High Performance, Low Noise Circuitry
Microphone Input and Thru with Pop-less On/Off Mute Switch
Instrument/Line Input and Thru Jacks
Headphone output section has 1/8-inch and 1/4-inch Jacks
9v battery and 12vDC Power Operation
Maximum Input Level: +6 dBu (mic), +12 dBu (instrument), +32 dBu (line), >+32 dBu (stereo monitor)
Input Impedance: 4.5k Ω (mic), 1m Ω (instrument), 100k Ω (stereo monitor, line)
Maximum Output Level: +12dBu (headphones)
Maximum Gain: 47dB (mic), 41dB(instrument), 21dB(stereo monitor, line)
Output Impedance: 47 Ω (each headphone output)

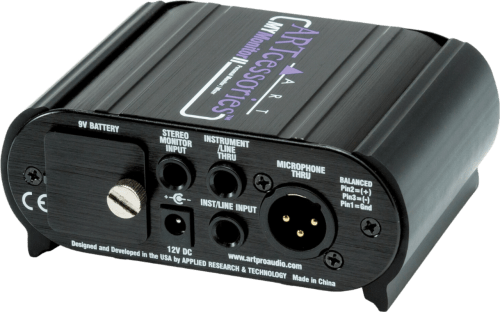

Input Connections: XLR balanced microphone, 1/4-inch stereo monitor, 1/4-inch mono instrument/line input
Output Connections: XLR balanced microphone, 1/4-inch and 1/8-inch headphones, 1/4-inch mono instrument/line thru
Signal To Noise Ratio: > 96dB
Power: 12VDC @ 150mA (Adaptor Included) or 9VDC Battery
