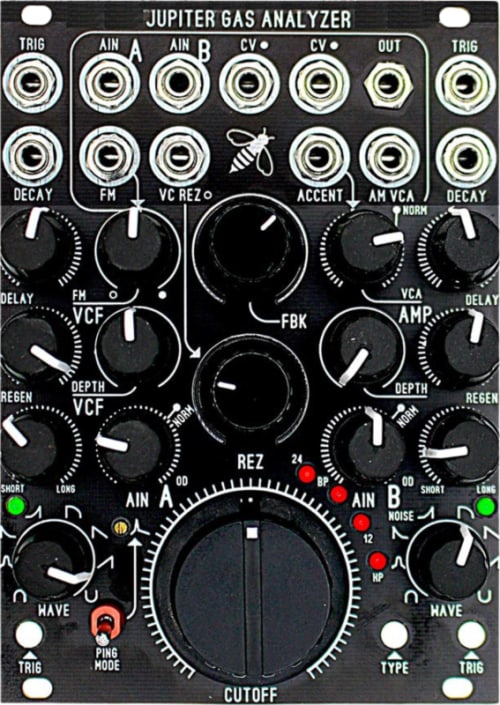

From Blue Lantern: What does this do? This module is an analog filter with an internal vca and two 1 shot envelope generators. This specific filter is modeled after the famous Jupiter-6 fame analog filter. Over 350 smt parts were used to make this product. Can this module make sound just on it's own? Yes, this product with certain settings will burp and output swish and swash sounds.
Features
- Type: Analog Filter
- Width: 18hp
- Current: +75mA.-70mA
- OTA 13700 based chips were used to model the now obsolete and out of production IR3109 chip.
- PCB Stack Level: 2 Stack on the back. This is Skiff compatible however, the power header is on stack#1.
- Ping Mode is capable of longer '808' like tails, which is adjustable by trimmer, located on the front panel.
- The Resonance Hack found online for Jupiter-6 Keyboards owners was also implemented.
- FeedBack internal patching was also implemented.
- Filter Capacitor Values were optimized.
- This product was designed to be interacted while sequenced. It is not a set and forget product.
Specifications
MPN
BLMJGA
UPC
0000715706621250
