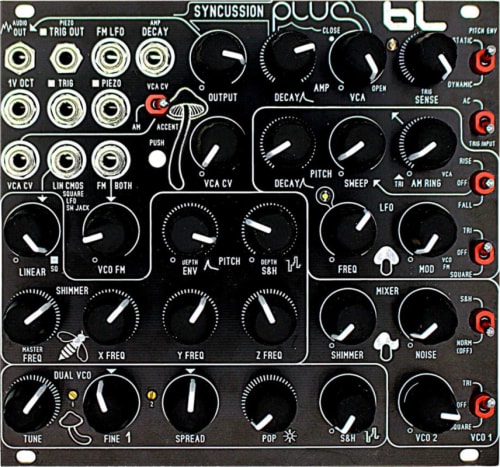

Syncussion Plus Percussion Generator Eurorack Synth Module

$395.00

We Like Deals!


What does this do? This module is a complete synthesizer mono voice, adjusted for percussion sounds. There are 3 sections on the mixer: Dual VCO, Shimmer Generator, and White Noise. There are two trigger circuit inputs on this product: original syncussion trigger conditioner, and the blue lantern 'Piezo' high sensitivity trigger conditioner. Both trigger inputs can be used simultaneous. You can use a drum pad on the trigger inputs, or a gate/trigger signal.

Features

  • Original syncussion trigger conditioner: the sensitivity is close tot he original product. Sticks or hard hits are required on a drum pad.
  • Piezo trigger input conditioner: the sensitivity is much higher, you can finger tap your drum pad. The sensitivity is so high a 'hanging' patch cable on this input will trigger infinitely.
  • VCO's are triangle based. VCO 1 has a Square wave selected by switch.
  • VCO Spread knob separates both vco's pitches from each other to quickly create chord like sound.
  • VCO's will respond to 1v/octave input patching.
  • There is an FM VCO input for both vco's.
  • LFO Section: analog circuit, triangle and square waves selected by switch.
  • Has an FM CV input.
  • Shimmer Generator: Square wave based XOR ring modded sound generation.
  • Has a Linear CV input. The LFO Square wave is switch jack internally connected to this jack. -
  • VCA circuit is OTA LM13700 based. There is a manual open the vca knob and VCA CV input.
  • AM Ring is an internal patch from the LFO to the VCA.
  • Sample and Hold. This circuit is using a modern IC LF398 for the S&H.
  • The sample is from the White Noise, the trigger input is the clock. This creates a random CV signal for every trigger hit.
  • The internal Envelope Generators are close to the original syncussion circuit. They react to the trigger signal sensitivity knob, and inputs.
  • WIDTH: 27hp
  • CURRENT:+96mA,-86mA

Specifications

MPN
BLMSYP
UPC
0000715706621243
