Afterneath Eurorack Synth Module

$299.00

We Like Deals!

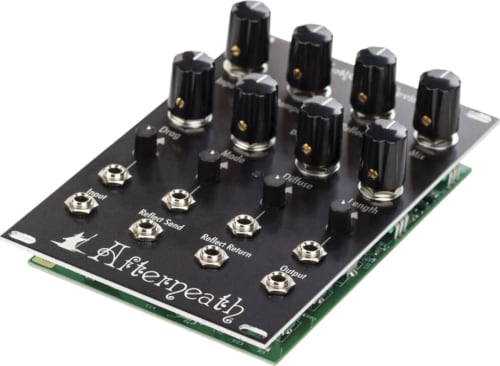

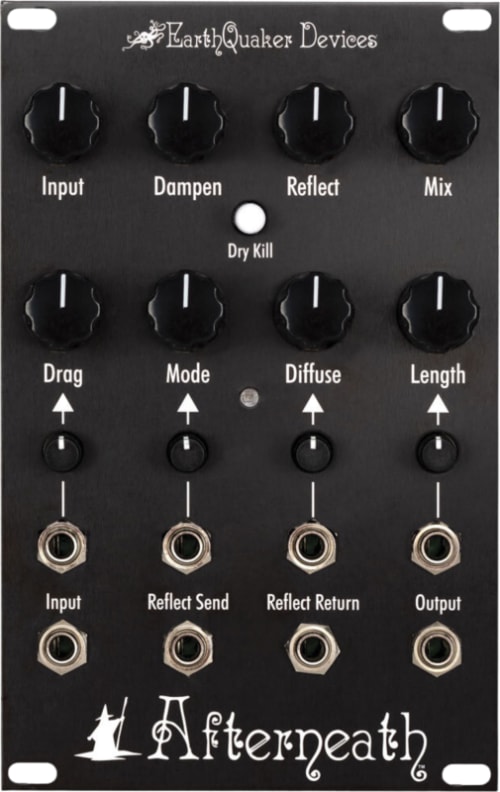

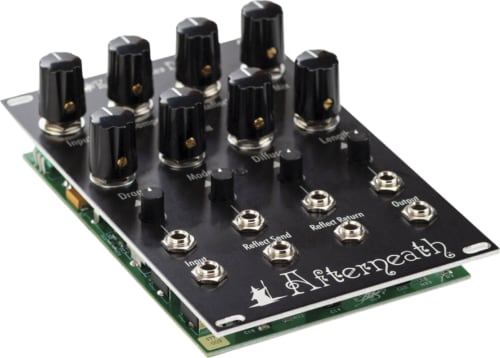

The Afterneath Eurorack Module brings the Otherworldly sounds from the effects pedal world right into your modular synthesizer with an expanded feature set. The Afterneath module features one main audio input, one main audio output, an audio send and return for the Reflect feedback path, and nine controls. Four of the parameters are controllable via CV, and each has been equipped with a dedicated attenuverter to process the incoming CV. The Afterneath module has a completely analog dry signal path and a totally digital wet signal path.

Features

  • Width: 16HP
  • Max Depth: 31.75 mm
  • Current Draw: 95 mA from the +12v rail, 0 mA from both the -12v and +5v rails
  • Standard 10-pin Eurorack power connector with a marking to notate the negative pins

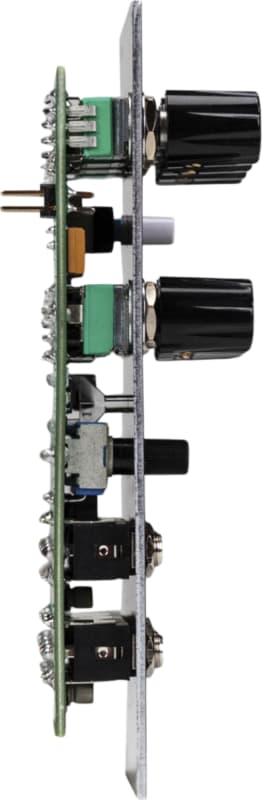

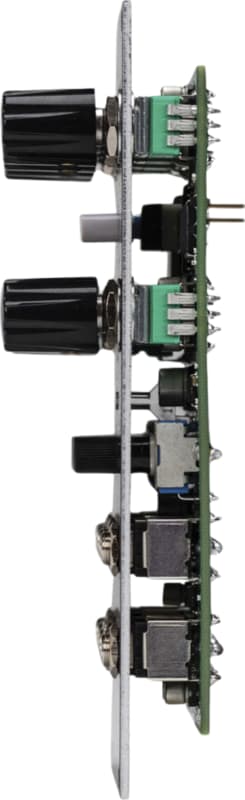

  • Skiff friendly – protrudes less than 1.25 inches (31.75 mm) behind the panel with the power header installed
  • Audio input capable of handling input signals ranging from instrument-level to modular-level, depending on the setting of the Input knob

Specifications

MPN
EQDAFTEEUROV1USA
UPC
0000810019911484
