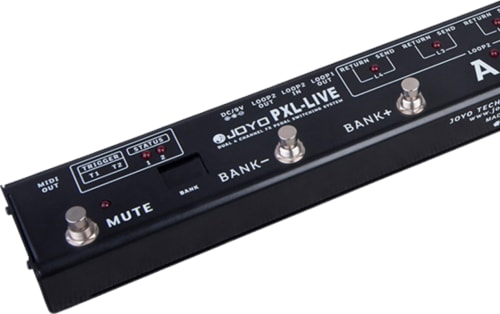

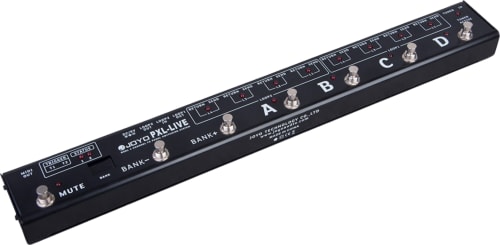

PXL-LIVE Loop Switcher Effects Pedal

$179.00

We Like Deals!


The pxl-live is the newest member of the joyo pxl series programmable pedal controllers - pxl4, pxl8, pxl-pro. The pxl-live is a very powerful pedal controller. It not only has dual 4 channel outputs like the pxl-pro, and dual (relay)switch outputs for channel switching, it also has MIDI out. Programmable MIDI commands can be sent enabling you to control MIDI enabled devices such as: effect pedals, effects racks, keyboards or amps through the MIDI port. The pxl-live can send MIDI cc and MIDI program change commands at the same time and will allow “Hands free” control of your computer recording software. For musicians who own a lot of musical gear, the pxl-live will be the perfect pedal controller to make life easier.

Features

  • Fully programmable
  • Dual 4 channel loop design
  • 2 on board fully programmable trigger switch(relay)
  • 1 X midi out
  • Midi cc and midi program change command are available simultaneously
  • Buffered bypass

Specifications

Dimensions
2.09" H x 21.26" W x 2.64" D
Effects
Utility & Signal Router
Inputs
1 x 1/4" (Input}, 8 x 1/4" (FX Return)
MIDI
Out
MPN
PXLLIVE
Outputs
3 x 1/4" (Output)
Power Source
9V DC power supply (not included)
Power Usage
220mA
Processing Type
Analog
UPC
0006972716321264
Weight
3.7 lbs
