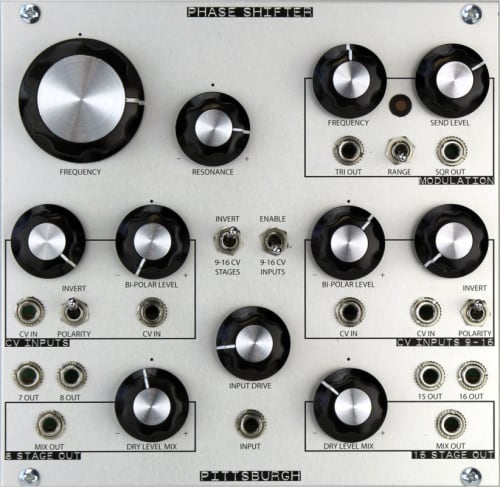

PHASE SHIFTER Module 16 Stage Voltage Controlled Phaser
$299.00
We Like Deals!
The Pittsburgh Modular Phase Shifter is a complex, 16 stage, analog effect module designed to expand on the classic swirls, rich swooshes, and doppler effects associated with the phaser.The Phase Shifter has a single 16 stage audio signal path to create a very rich, full sound. Phased audio outputs are tapped from stages 7, 8, 15, and 16. Stages 8 and 16 each have a mix output that allow the phased signal to be mixed with an attenuvertable dry signal.Four CV inputs, an onboard LFO, and multiple CV routing options allow for maximum flexibility and extremely deep modulation options. The CV inputs are split into 2 groups. The first group of CV inputs controls either all 16 stages or just stages 1-8. The second group of CV input controls stages 9-16 and is switchable on or off. All CV signals routed to stages 9-16 can be inverted. Resonance can be positive or negative and the module will self oscillate in either direction.
Features
- Size: 26hp
- Depth: 35mm
- Power Usage: +12v 175mA, -12v 155mA. Does not require +5v.
- 16 stage, analog effect module
Specifications
