Tiptop Audio Octovert CV Processor Eurorack Synth Module, Black
$280.00
We Like Deals!
The Octovert is a CV processor capable of scaling, inverting, and offsetting up to eight polyphonic signals. It can also be externally controlled via CV! Its most obvious applications include inverting envelopes, reversing the direction of CV, and scaling plus offsetting any CV source to precisely fine-tune the modulation sweet spot of the target module. With the added feature of external control, it takes things even further by modulating the modulation signal itself for even deeper modulation motion.
Features
- 8-Channel CV Processor
- Tiptop Audio ART Module: Polyphonic Modules with Proprietary Transmission Format for Pitch, CV, Gate and Audio Signals via Tiptop Audio Polytip Patch Cable
- Simultaneous Scaling, Inversion and Offset Generation on 8 polytip Channels
- Bipolar Attenuator and Offset Controller, Each with CV Input
- Polytip Input and Output
- Mute Button for Output
- Current Requirement: 18mA (+12V) / 15mA (-12V)
- Depth: 40mm
Specifications
Controller

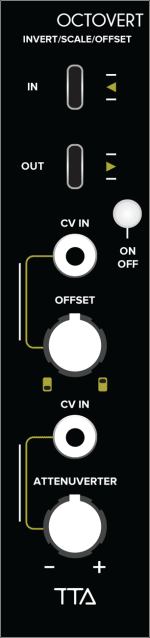

Bi-polar Offset Knob, Attenuverter Knob, Output Disable Button
HP Size
6HP
Inputs
1 x Polytip (proprietary), 1 x 1/8" Offset CV In, 1 x 1/8" Attenuverter CV In
MPN
Octovert
Outputs
1 x Polytip (proprietary)
Power Supply
Requires Eurorack Case and Power Supply
Type
Synth Module
UPC
0008859469915149
