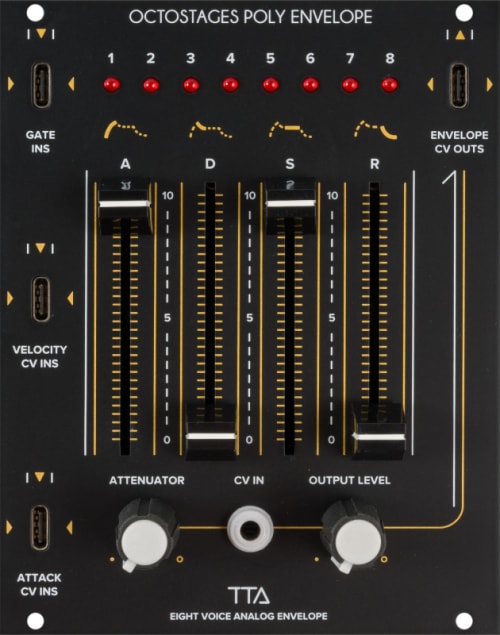

Tiptop Audio Octostages Analog Envelope Generator Eurorack Synth Module, Black

$400.00

We Like Deals!


Tiptop Audio's Octostages is an eight voice fully analog envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Features

  • Analogue 8-Channel Envelope Generator
  • Polyphonic Modules with Proprietary Transmission Format for Pitch, CV, Gate and Audio Signals via Tiptop Audio Polytip Patch Cable
  • Sliders for Attack, Decay, Sustain and Release
  • CV Input with Bipolar Attenuator for Output Level
  • Polytip Connections for Gate Ins, Envelope Outs, Velocity CV Ins and Attack CV Ins

Specifications

Controller
4 x ADSR Sliders, Attenuator Knob, Output Level Knob
HP Size
20HP
Inputs
1 x 1/8" CV In, 1 x Polytip Gate In (proprietary), 1 x Polytip Velocity In (proprietary), 1 x Polytip Attack CV In (proprietary)
MPN
Octostages
Outputs
1 x Polytip Envelope CV Out (proprietary)
Power Supply
Requires Eurorack Case and Power Supply
Processing Type
Analog
Type
Synth Module
UPC
0008859469915088
