Tiptop Audio Vortex6 Polyphonic 6-voice Wavetable Oscillator Eurorack Synth Module, Black

Name: Tiptop Audio Vortex6 Polyphonic 6-voice Wavetable Oscillator Eurorack Synth Module, Black
Brand: Tiptop Audio
SKU: TIPTVORTEX6
Price: 550 USD
Availability: InStock

$550.00

Color: Black

We Like Deals!

All Tiptop Audio

All Keyboards

All Synthesizers & Synth Modules

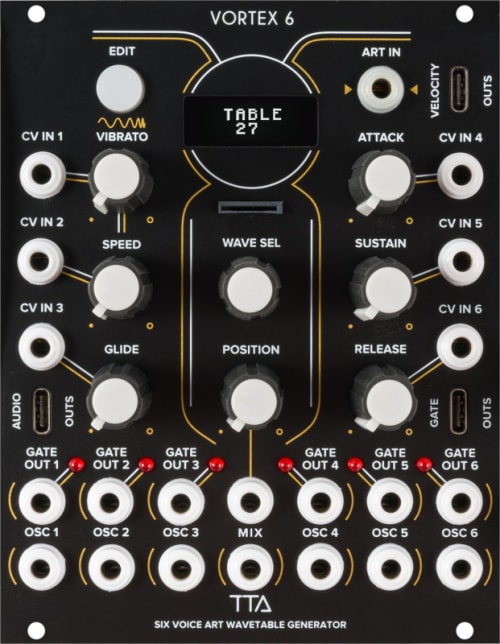

Tiptop Audio's Vortex6 is a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the ’80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outs—either through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world’s first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Features

6-Voice Polyphonic Wavetable Oscillator
Inspired by the PPG Wave 2.2
Utilizes ART Data for Pitch Control, Incompatible with 1V/Oct
Single ART Input with Internal Voice Allocator
Internal Wavetables, User Wavetables Supported on SD Card
Outputs Available on Individual 3.5mm Jacks or Consolidated Polytip Connections
Mix Output Supports Paraphonic Playback and Up to 12 Oscillators in Detune Mode
Internal Vibrato, Pitch Glide, and Wave Envelopes
Gate Outputs for Modulation Synchronized per Voice

Specifications

Controller

Edit Button, Wave Select Knob, Position Knob, Vibrato Knob, Speed Knob, Glide Knob, Attack Knob, Sustain Knob, Release Knob

HP Size

20HP

Inputs

1 x 1/8" (art), 6 x 1/8" CV In

Internal Memory

1 x microSD Card Slot

MPN

Vortex6

Oscillator

6 x VCOs

Outputs

1 x 1/8" (mix), 1 x Polytip (proprietary, audio), 1 x Polytip (proprietary, velocity), 1 x Polytip (proprietary, gate), 6 x 1/8" Gate Out, 6 x 1/8" Voice Out, 1 x 1/8" Wavetable Position

Polyphony

6 Notes

Power Supply

Requires Eurorack Case and Power Supply

Processing Type

Digital

Type

Synth Module

UPC

0008859469915064

Waveform

Ramp, Triangle, Square, Sine
