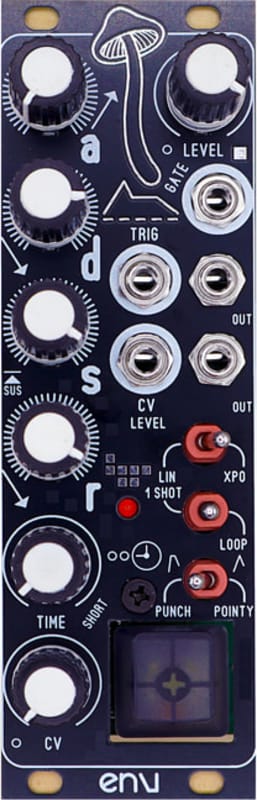

Blue Lantern ADSR ENV MK3 Looping Envelope Generator Eurorack Synth Module
$95.00
We Like Deals!
This module is an envelope generator. It offers Attack, Decay, Sustain, Release, and a 'time' knob to alter the length of the stage or 'loop'. You use this module to control other modules, for example: VCA's, VCO's pitch, Filter's. When in loop mode, the output is audible. Control Knobs: Attack, Decay, Sustain, Release, Time, Level with CV input Knob. Switches: Linear or Exponential mode. There is also a switch for Normal one pass, Gated mode, or Loop mode. Gated mode is like loop mode but it will only cycle with a gate signal patched up. There is a new added Punch Mode.
Features
- Attack, Decay, Sustain, Release, Time Adjustment (Lets You Change the Overall Timing Range of the Envelope)
- Use the CV Input Jack and the Potentiometer Right Above it to Adjust How Much CV Input You Want
- Use the Top Level Knob to Lower the Output if You Need for Example 0-5v Range
- Gate Input, You Can Use Triangle, Sine, Ramp, Saw Waves. 0-5v,-5/+5v Signals Will Work
Specifications
Dimensions
1.3" H x 1.5" W x 5" L
HP Size
8HP
MPN
BLMENV3
Outputs
Simultaneous Envelope Outs
Processing Type
Digital
Type
Synth Module
UPC
0000715706621205
