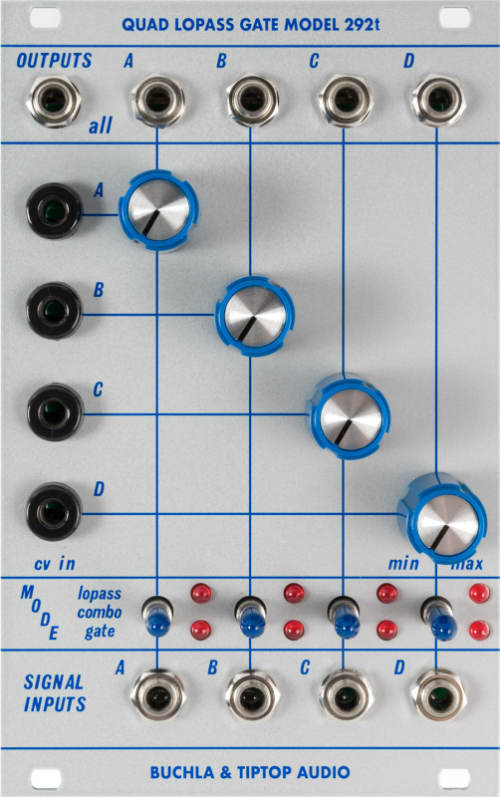

Tiptop Audio 292t (RHS) Quad Lopass Gate Eurorack Synth Module, Silver
$350.00
We Like Deals!
Shape your sounds organically with the TipTop Audio 292t RHS Quad Low-Pass Gate, a flexible low-pass gate module that includes four independent voltage-controlled filter/amplifiers. Each has a signal input and output, a control-voltage input that varies the unit's gain and an offset adjustment. A switch selects one of three operating modes: straight gate (VCA), low-pass filter (VCF), or a combination of the two, in which the spectral response varies as the gain is changed. The module ships with a ribbon power cable. Note: This version of the 292t is a non-vactrol-LPG-compliant with UK and EU RoHS regulations.
Features
- Quad Low Pass Gate Module
- Eurorack Revival of Buchla's 292C
- Four Independently Controlled Signals (A, B, C, D)
- Each Channel Has a Signal Input, a CV Input, and a Signal Output
- Additional "All" Output for Summed Signal
- Attenuators Per Channel to Control CV Bias or General Gain
- Each Channel Can Act in One of Three Modes: Lopass, Acts As a Lowpass; Filter Gate, Acts As a Typical VCA; Combo, Combines the Other Two to Form the Classic Buchla Low Pass Gate
Specifications
HP Size
16HP
Inputs
4 x 1/8", 4 x CV in
MPN
292t (RHS)
Outputs
5 x 1/8"
Power Supply
Requires Eurorack Case and Power Supply
Type
Synth Module
UPC
0008859469914135
